TK-18 IPC-7711/7721 Certification Kit

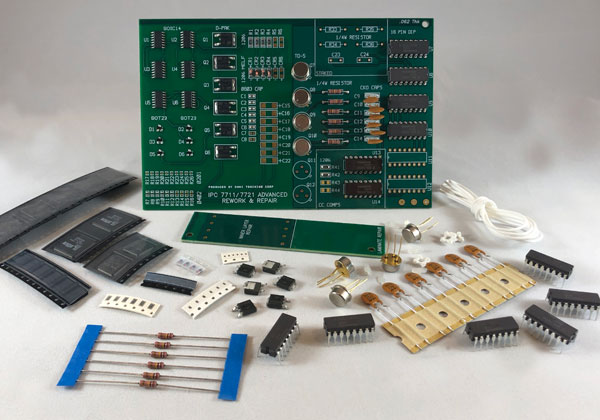

The TK-18 Kit provides the assembled TB-7C Through-hole & SMT PCBs with the wires, terminals and components for student exercises that are required to accomplish the IPC-7711/7721 Rework, Modification & Repair certification. Equipped with a variety of components for removal & replacement with jumper wires and conformally coated section.
| Qty | Description |  |
| 1 | TB-7C – Through-hole PCB | |
| 1 | TB-7C – SMT PCB | |
| 3' | Stranded Wire 22 AWG | |
| 1' | Single Strand Wire 30 AWG | |
| 5 | IC6 – DIP IC 16 Lead | |
| 4 | TO5 – TO 5 Transistors | |
| 4 | TO5/TO18 Transistor Spacers | |
| 5 | RC07 – Resistors 1/4 Watt | |
| 4 | CKO – Radial/Tombstone Capacitors | |
| 4 | CKS – Spacers, Radial Capacitors | |
| 6 | CH1R – 1206 Chip Resistors | |
| 6 | CH3C – 0603 Chip Capacitors | |
| 6 | CH4R – 0402 Chip Resistors | |
| 4 | ME1D Cylindrical End Caps | |
| 5 | SO6 – SOT-23 Transistors | |
| 5 | SO4 – SOIC 14 Lead Gull-Wing | |
| 4 | PC3 – PLCC 28 J-Lead | |
| 2 | QFP4 – TQFP 44 Lead | |
| 2 | QFP5 – TQFP 100 Lead | |
| 4 | D-PAK – Bottom Thermal Plane D-Paks | |
Custom Kits supplied upon request. Please email us at info@omnitraining.com or call (909) 941-9495 if you have any questions or need further details.
